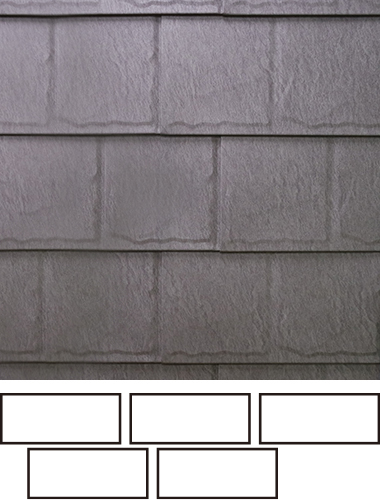

CLASSIC

JM Panel CLASSIC

Product Description

Product Features

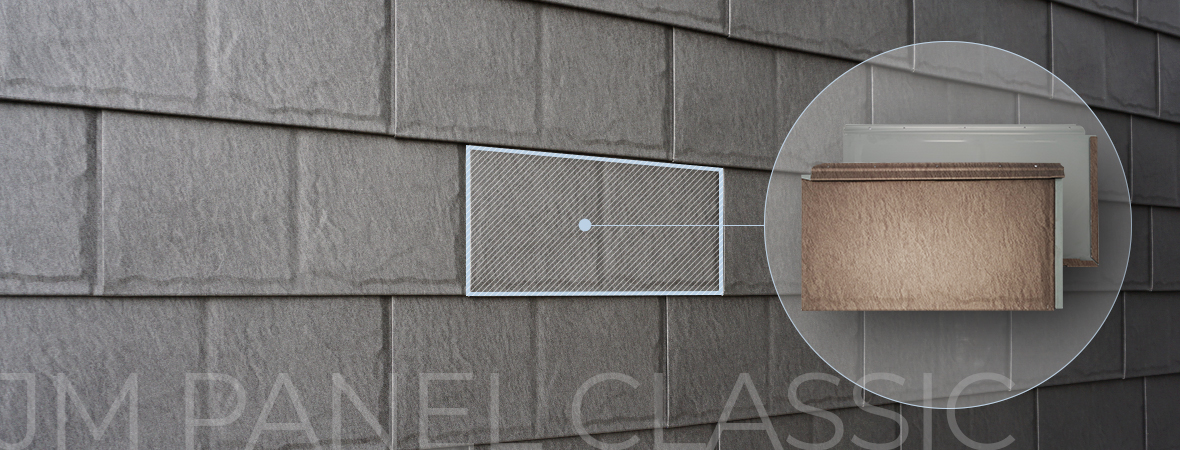

JM Panel CLASSIC is a patented no-clip system designed to be fixed and installed with a simple piece.
It is an AL (aluminum) product that is excellent for corrosion prevention and does not require a separate structural reinforcement work due to the light weight of the product.

Supply Specification

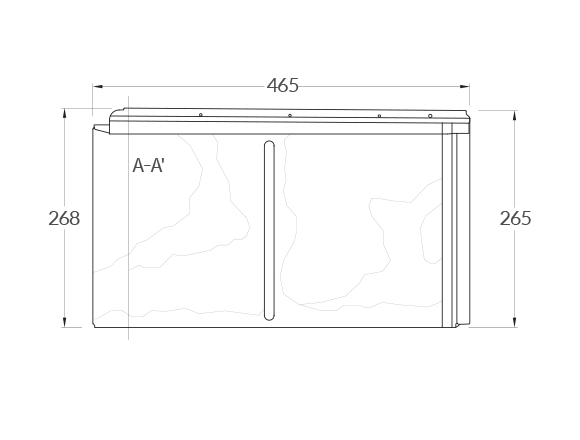

Total Area Exposed Area Product Packaging Processed Material
465 x 265 mm 250 x 234 mm 25EA (2.64㎡) / Box Aluminum

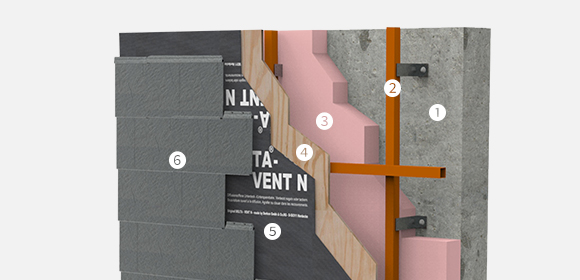

3D Deployment Chart

    • ❶ Concrete
    • ❷ Square pipe
    • ❸ Insulation
    • ❹ Water-resistant Plywood
    • ❺ DELTA VENT N moisture-permeable waterproof paper
    • ❻ JM PANEL CLASSIC

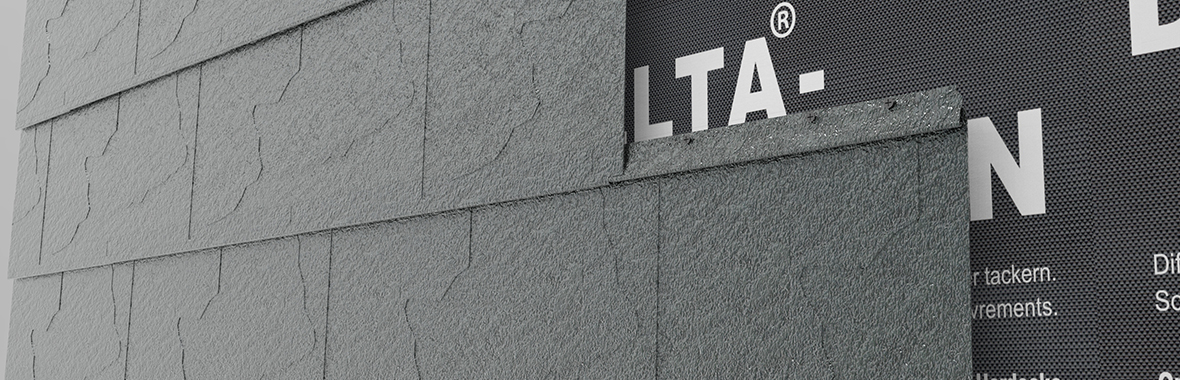

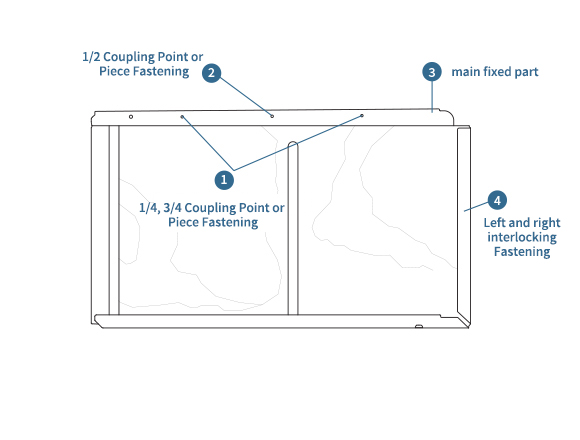

Panel Engagement

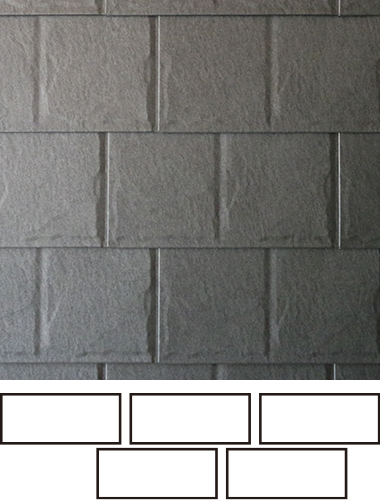

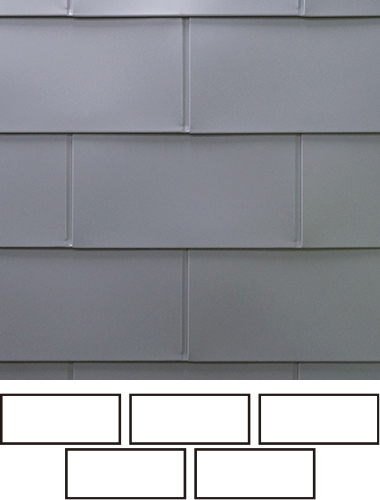

Construction Pattern

  • Pattern Type 1 1/4 connection
  • Pattern Type 2 3/4 connection
  • Pattern Type 3 1/2 connection
