GENES

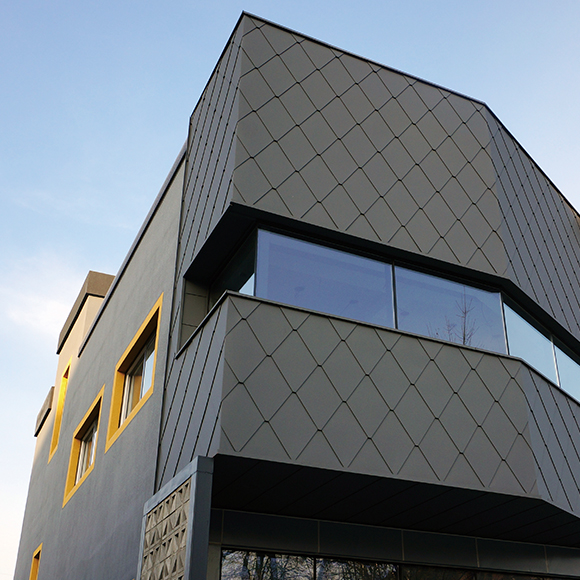

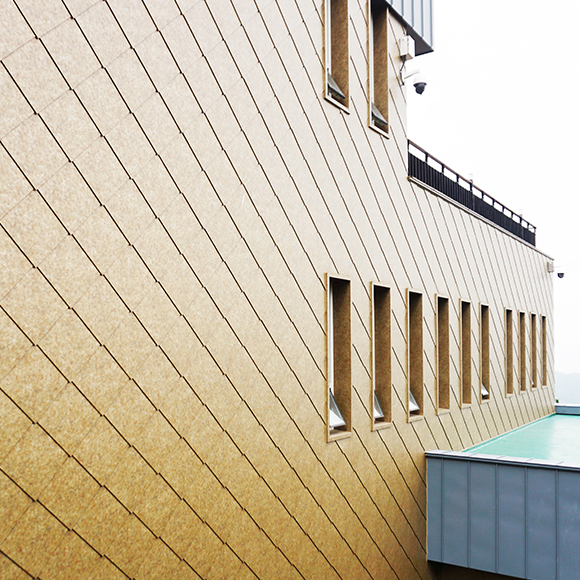

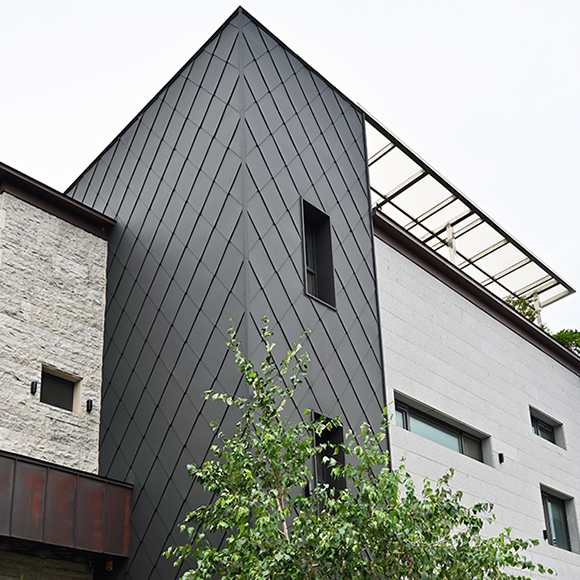

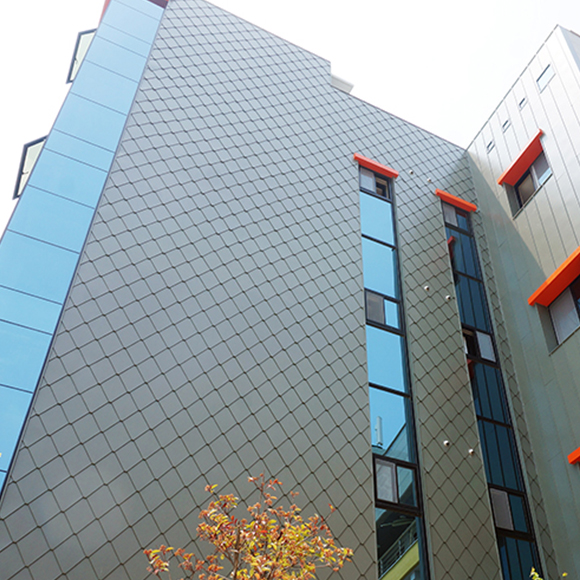

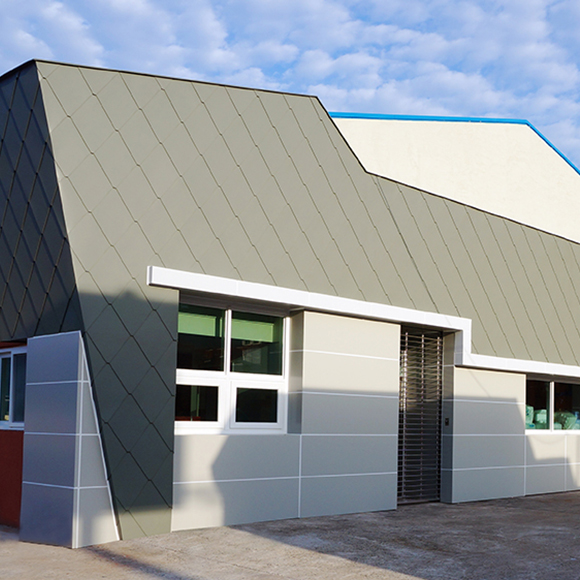

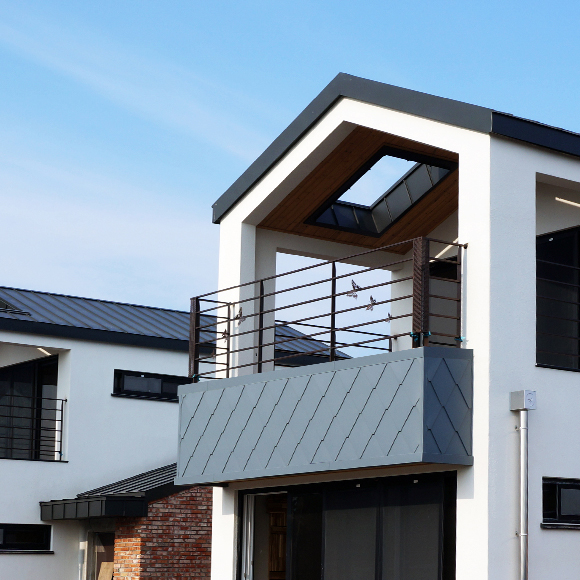

JM Panel GENES

Product Description

Product Features

GENES is a utility model registered product and is an improved panel in functional and design than the existing flat sound method.
The treatment of joints and the design that maximizes the shade of the joints to prevent flooding and leakage complete a sensuous design that is completely different from the existing metal construction method.

Supply Specification

Product Type Exposed Area Sheet/㎡ Sheet/1py Plain Clip

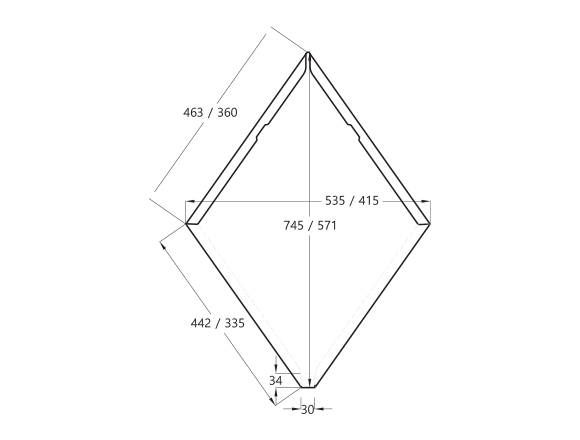

GENES System 400 360 x 335 mm 8.3 Sheet 27.4 Sheet Two per sheet
GENES System 500 463 x 442 mm 4.4 Sheet 14.5 Sheet Two per sheet

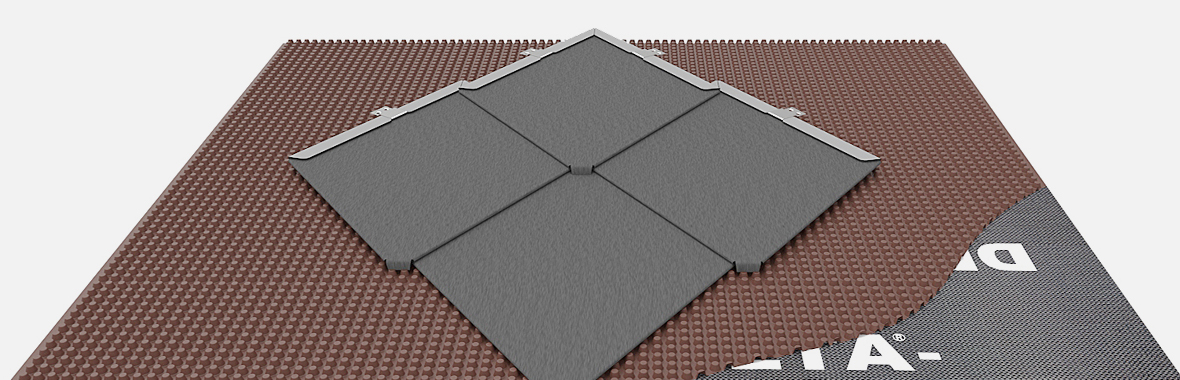

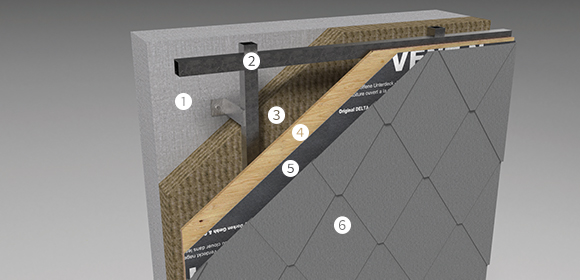

3D Deployment Chart

    • ❶ Concrete
    • ❷ Square Pipe
    • ❸ Insulation
    • ❹ Waterproof Plywood
    • ❺ DELTA VENT N moisture-permeable waterproof paper
    • ❻ JM PANEL GENES

How to Install

  • Construction of the summer solstice For the installation of JM Panel GENES, construct each pipe base horizontally and vertically on the structure (reinforced concrete). Waterproof by constructing water-resistant plywood and moisture-permeable waterproof paper on the lower extremity frame.
  • JM Panel GENES Installation The installation of JM Panel GENES can be done simply without the need for a separate clip or fastening parts. There is a hole for piece construction on the upper part of the panel, and it is constructed by inserting left and right, upper and lower joints.
  • JM Panel GENES Flashing Installation The flashing work for the completeness of the installation of the JM Panel GENES panel is also very important for waterproofing. It prevents rainwater from burning into the panel by using a flashing that fits each construction part. It also adds design completeness with the use of flashing.
  • Ease of Construction of JM Panel GENES The JM Panel GENES panel minimizes the use of sealant, so there is no contamination from the area where the sealant is used. In addition, convenience has been increased with a simple construction method that does not require complicated tightening, and fast and economical construction is possible.

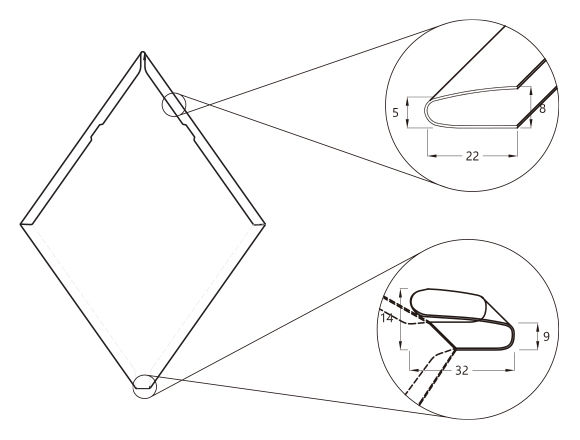

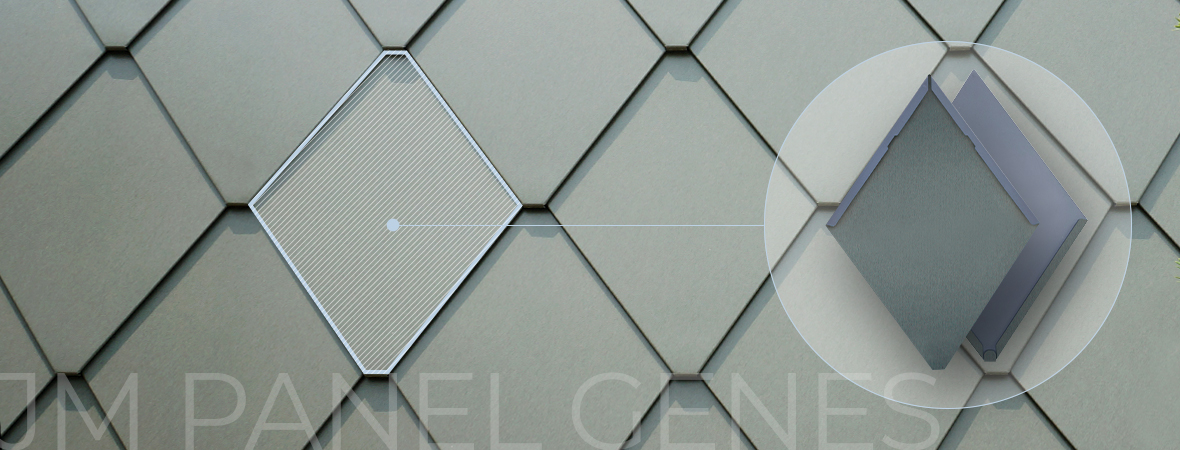

Panel Engagement
