VERTICAL

JM panel VERTICAL

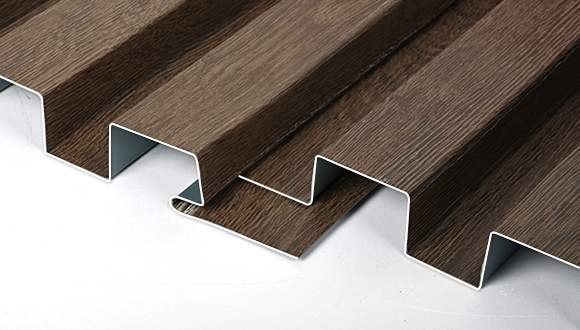

V250 Product Description

JM PANEL V250

JM Panel V250 is produced in consideration of the aesthetic needs of architects and designers,
as well as the economic feasibility and constructability of construction companies.
It is a product that can structure the melody of a regular straight line by breaking away from the metal facade of uniform design, and it is a pattern that emphasizes verticality in line with the trend of modern architecture pursuing modernity, and can be applied to a variety of buildings from detached houses to large commercial facilities.
In addition, various materials and colors can be applied, so it can be used for the elevation, ceiling, and interior of buildings.

Supply Specification

Total Area Exposure Width Product Purpose Construction Direction Processed Material
W500 x L x H30 mm Exposure Width: 250 / L=Create Custom Dimensions Interior and exterior finishing materials of buildings Can be constructed vertically or horizontally zinc, aluminum, high corrosion Resistance and High weather Resistance Alloy Plated Steel Sheet , copper plate

V250 Sample

WOOD

  • JMAC
    WD 01 Natural Wood
  • JMAC
    WD 02 Red Brown Wood
  • JMAC
    WD 03 Dark Brown Wood
  • JMAC
    WD 04 Concrete Wood

ZINC

  • JARDEN ZINC
    Textured Grey
  • JARDEN ZINC
    Onyx Black
  • JARDEN ZINC
    Sonoma Red
  • JARDEN ZINC
    Ocean Blue
  • JARDEN ZINC
    Garnet Green
  • PREMIUM JAL ZINC
    001 Grey
  • PREMIUM JAL ZINC
    002 Black
  • PREMIUM JAL ZINC
    003 Red
  • PREMIUM JAL ZINC
    004 Blue
  • PREMIUM JAL ZINC
    005 Green
  • PREMIUM JAL ZINC
    006 Dark Grey
  • PREMIUM JAL ZINC
    007 Gold
  • Premium JAL ZINC
    Premium JAL 008 Brown
  • JMAC
    ZN 01 Light Grey(Matte)
  • JMAC
    ZN 02 Dark Grey(Matte)
  • JMAC
    ZN 03 Charcoal Grey(Matte)
  • JMAC
    ZN 04 Black(Matte)
  • JMAC
    ZN 05 Dark Black(Matte)
  • JMAC
    ZN 06 Onyx Black(Matte)
  • JMAC
    ZN 07 Bronze(Matte)
  • JMAC
    ZN 08 Navy(Matte)
  • JMAC
    ZN 09 Blue Grey(Matte)
  • JMAC
    ZN 10 Ocean Blue(Matte)

METALIC

  • JMAC
    ML 01 Metalic Silver

SOLID

  • JAL ZINC
    201 Solid Grey
  • JAL ZINC
    202 Solid Dark Grey
  • JAL ZINC
    203 Solid Pure White
  • JAL ZINC
    204 Solid Matte Black
  • JMAC
    NC 01 Non-combustion Dark Grey
  • JMAC
    NC 02 Non-combustion Black
  • JMAC
    NC 03 Non-combustion White
  • JMAC
    SD 01 Pure White

WRINKLE

  • JAL ZINC
    301 Wrinkle Black
  • JAL ZINC
    302 Wrinkle Dark Grey
  • JMAC
    WK 01 Wrinkle Grey
  • JMAC
    WK 02 Wrinkle Black
  • JMAC
    WK 03 Wrinkle Wine
  • JMAC
    WK 04 Wrinkle Dark Grey

STONE

  • JAL ZINC
    401 Slate Grey
  • JAL ZINC
    402 Slate Brown
  • JMAC
    ST 01 Marble Stone Blue
  • JMAC
    ST 02 Marble Stone Grey
  • JMAC
    ST 03 Lime Stone Grey
  • JMAC
    ST 04 Lime Stone Black
  • JMAC
    ST 05 Sand Stone Grey
  • JMAC
    ST 06 Sand Stone Black
  • JMAC
    ST 07 Royal Stone Beige
  • JMAC
    ST 08 Royal Stone Grey

CORTEN

  • JMAC
    CT 01 Rust Brown
  • JMAC
    CT 02 Rust Green
  • JMAC
    CT 03 Rust Black
  • JMAC
    CT 04 Rust Corten

HERITAGE

  • JMAC
    CT 05 Heritage
  • JMAC
    CT 06 Dark Heritage

COPPER

  • COPPER
    001 Copper
  • COPPER
    002 Patina Green
  • COPPER
    003 Light Brown
  • COPPER
    004 Dark Brown

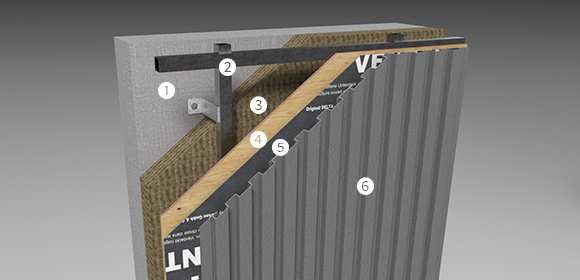

3D Deployment Chart

    • ❶ Concrete
    • ❷ Square Pipe
    • ❸ Insulation
    • ❹ Waterproof Plywood
    • ❺ DELTA VENT N moisture-permeable waterproof paper
    • ❻ JM PANEL V250

How to Install

  • Construction of the summer solstice For the installation of JM Panel V250, construct each pipe base horizontally and vertically on the structure (reinforced concrete). Waterproof by constructing water-resistant plywood and moisture-permeable waterproof paper on the lower extremity frame.
  • JM Panel V250 Installation The installation of JM Panel V250 can be done simply without the need for a separate clip or fastening parts. There is a hole for piece construction on the upper part of the panel, and it is constructed by inserting left and right, upper and lower joints. When installing JM Panel V250, it is important to install it horizontally and vertically.
  • JM Panel V250 Flashing Installation Flashing construction for the completeness of JM Panel V250 panel installation is also very important for waterproofing. It prevents rainwater from burning into the panel by using a flashing that fits each construction part. It also adds design completeness with the use of flashing.
  • Convenience of JM Panel V250 Construction JM Panel V250 panel minimizes the use of sealant, so there is no contamination from the area where the sealant is used. In addition, convenience has been increased with a simple construction method that does not require complicated tightening, and fast and economical construction is possible.
