S175 Product Description

JM PANEL S175

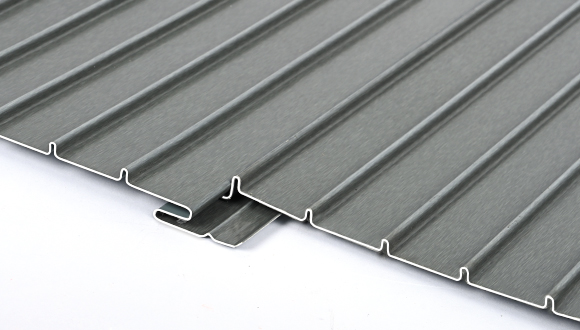

JM Panel S175 is produced in consideration of the aesthetic needs of architects and designers, as well as the economic feasibility and construction feasibility of construction companies.
It is a product that can express the melody of a regular straight line in a structured manner by breaking away from the metal facade of uniform design to meet the trend of modern architecture The verticality-emphasized pattern of JM Panel S175 is applicable to buildings ranging from detached houses to large commercial facilities. In addition, various materials and colors can be applied, so it can be used for the elevation, ceiling, and interior of buildings.

Supply Specification

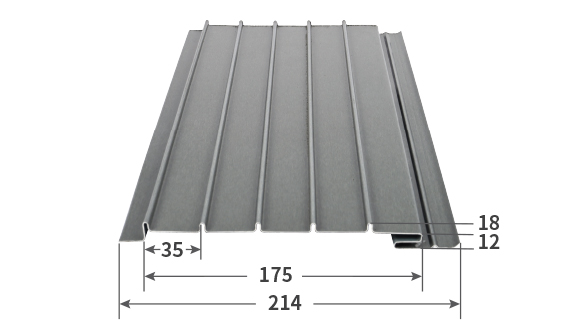

Total Area Exposure Width Product Purpose Construction Direction Processed Material
W175 x L x H18 mm Exposure Width: 300 / L=Create Custom Dimensions Interior and exterior finishing materials of buildings Can be constructed vertically or horizontally zinc, aluminum, high corrosion Resistance and High weather Resistance Alloy Plated Steel Sheet , copper plate

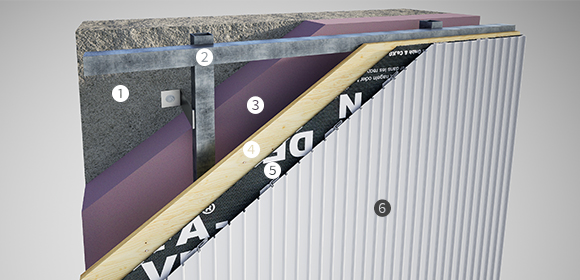

3D Deployment Chart

    • ❶ Concrete
    • ❷ Square Pipe
    • ❸ Insulation
    • ❹ Waterproof Plywood
    • ❺ DELTA VENT N moisture-permeable waterproof paper
    • ❻ JM PANEL S175

How to Install

  • Construction of the summer solstice For the installation of JM Panel S175, construct each pipe base horizontally and vertically on the structure (reinforced concrete). Waterproof by constructing water-resistant plywood and moisture-permeable waterproof paper on the lower extremity frame.
  • JM Panel S175 Installation The installation of JM Panel S175 can be done simply without the need for a separate clip or fastening parts. There is a hole for piece construction on the upper part of the panel, and it is constructed by inserting left and right, upper and lower joints. When installing JM Panel S175, it is important to install it horizontally and vertically.
  • JM Panel S175 Flashing Installation Flashing construction for the completeness of JM Panel S175 panel installation is also very important for waterproofing. It prevents rainwater from burning into the panel by using a flashing that fits each construction part. It also adds design completeness with the use of flashing.
  • Convenience of JM Panel S175 Construction JM Panel S175 panel minimizes the use of sealant, so there is no contamination from the area where the sealant is used. In addition, convenience has been increased with a simple construction method that does not require complicated tightening, and fast and economical construction is possible.

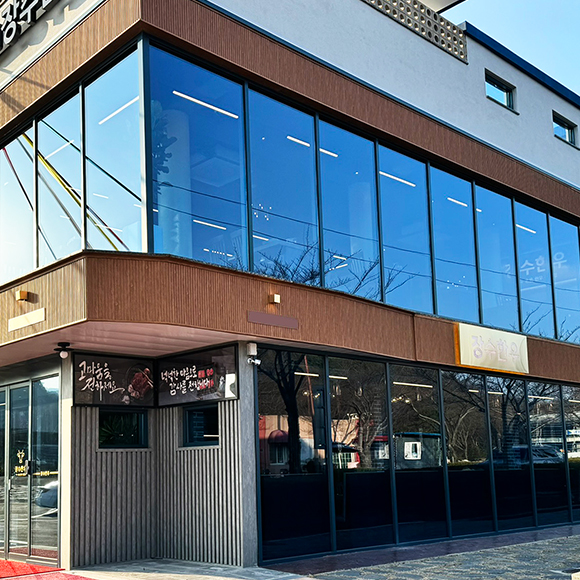

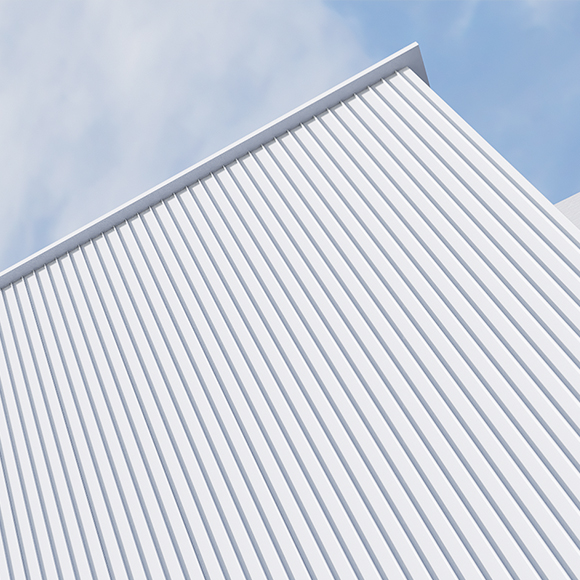

Construction Case
