JM Panel EUROPE

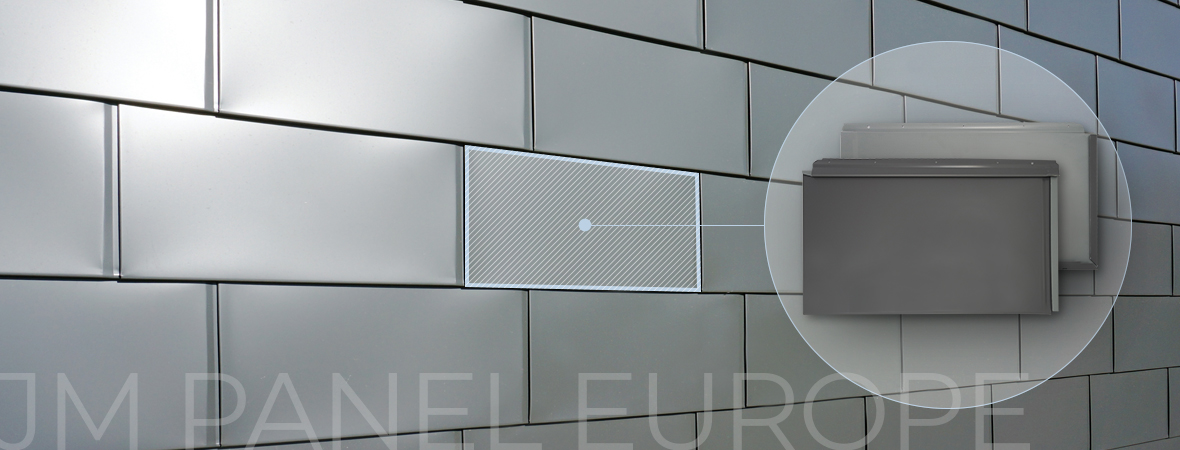

Product Features

JM Panel EUROPE is a patented no-clip system designed to be fixed and installed with a simple piece.
It is an AL (aluminum) product that is excellent for corrosion prevention and does not require a separate structural reinforcement work due to the light weight of the product.

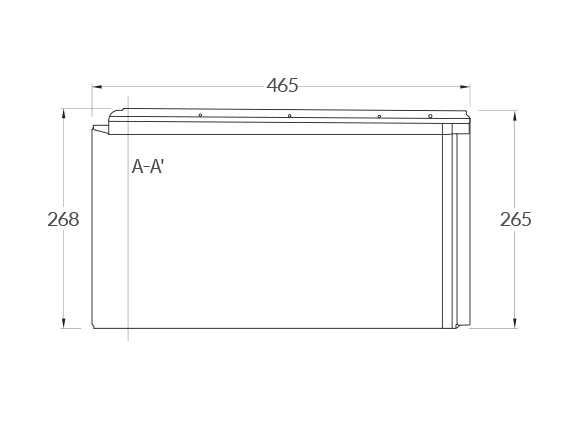

Supply Specification

Total Area	Exposed Area	Product Packaging	Processed Material
465 x 265 mm	250 x 234 mm	25EA (2.64㎡) / Box	Aluminum

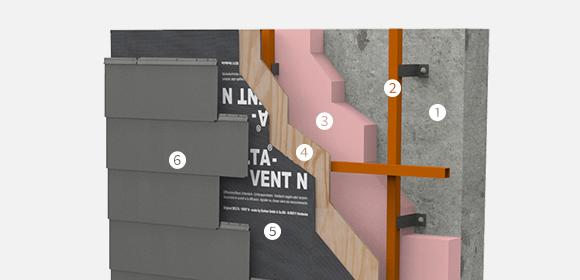

3D Deployment Chart

- ❶ Concrete
- ❷ Square Pipe
- ❸ Insulation
- ❹ Waterproof plywood
- ❺ DELTA VENT N moisture-permeable waterproof paper
- ❻ JM PANEL EUROPE

How to Install

Construction of the summer solstice For the installation of JM Panel EUROPE, construct each pipe base horizontally and vertically on the structure (reinforced concrete). Waterproof by constructing water-resistant plywood and moisture-permeable waterproof paper on the lower extremity frame.

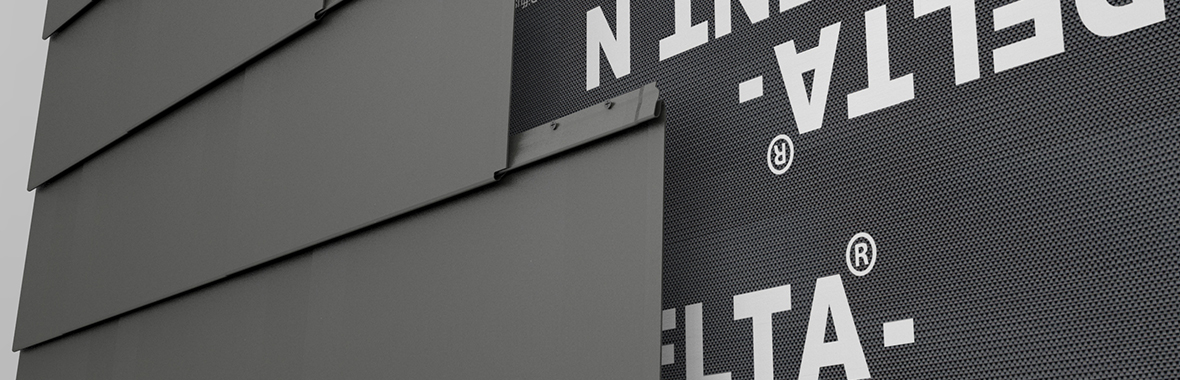

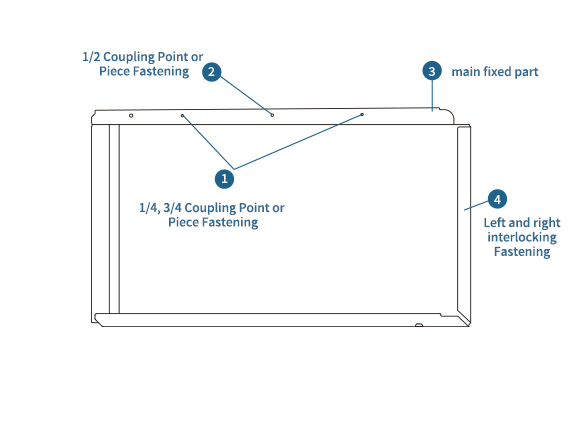

JM Panel EUROPE Installation The installation of JM Panel EUROPE allows simple construction without the need for a separate clip or fastener. There is a hole for piece construction on the upper part of the panel, and the left and right, upper and lower joints are inserted to be constructed.
JM Panel EUROPE Flashing Installation The flashing work for the completeness of the installation of the JM Panel EUROPE panel is also very important for waterproofing. It prevents rainwater from burning into the panel by using a flashing that fits each construction part. It also adds design completeness with the use of flashing.
Ease of Construction of JM Panel EUROPE The JM Panel EUROPE panel minimizes the use of sealant, so there is no contamination from the area where the sealant is used. In addition, convenience has been increased with a simple construction method that does not require complicated tightening, and fast and economical construction is possible.
