JM panel INTERLOCK

INTERLOCK

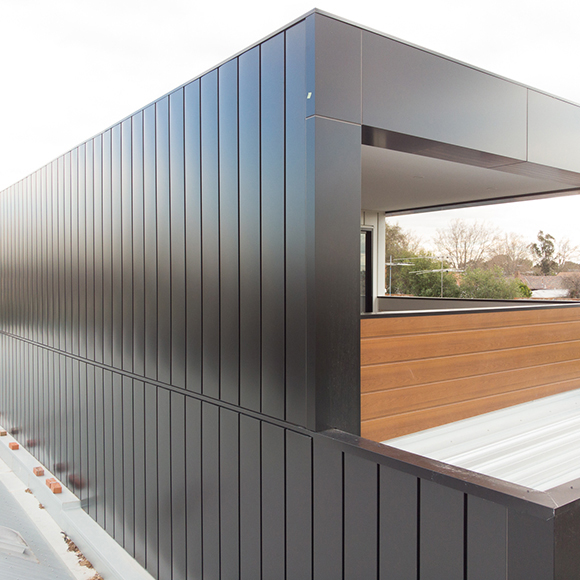

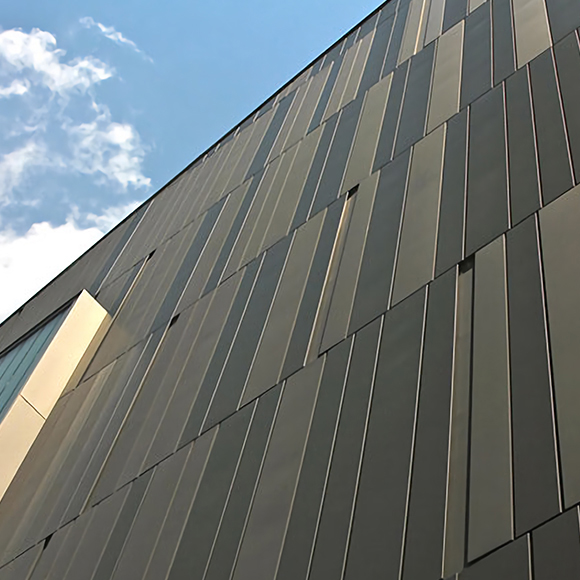

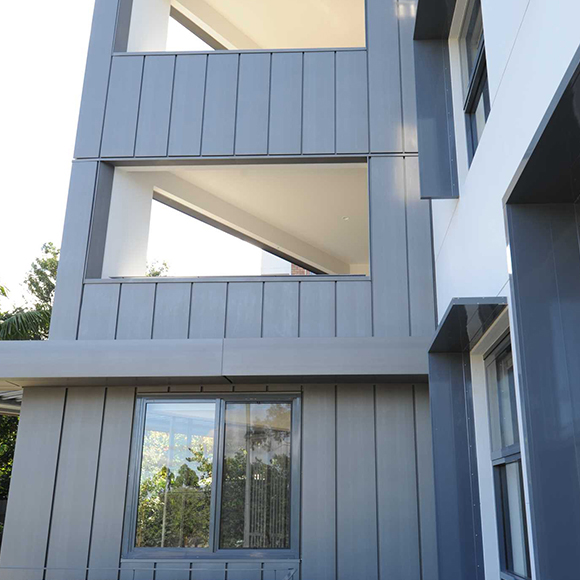

Interlock system is a new type of exterior panel method that can be constructed efficiently with a utility model registered product.
You can freely adjust the exposure width, so you can respond to various designs.
The easy fitting method enables efficient construction and air reduction. Interlocking systems include Zinc, Aluminum, Copper, Galva, etc It can be applied to several metal materials and is suitable for completing the elevation of buildings different from the existing design.

Supply Specification

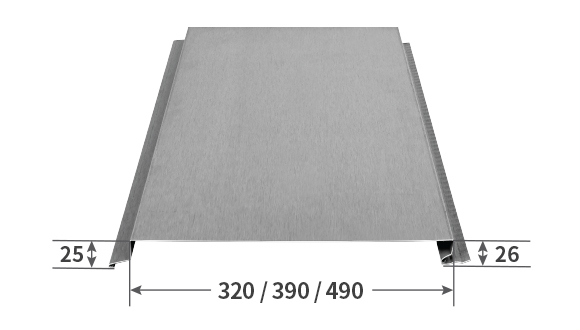

Total Area	Exposure Width	Product Purpose	Construction Direction	Processed Material
W430 x L x H25 mm	Exposure Width: 320 / L=Create Custom Dimensions	Interior and exterior finishing materials of buildings	Can be constructed vertically or horizontally	zinc, aluminum, high corrosion Resistance and High weather Resistance Alloy Plated Steel Sheet , copper plate
W500 x L x H25 mm	Exposure Width: 390 / L=Create Custom Dimensions
Create Custom Dimensions	Exposure Width: 320~490 / L=Create Custom Dimensions

Bead Details

Wrinkle Options	BEAD RIBS	PENCIL RIBS (Small/Large)	V-RiBS (Small/Large)
One-sided wrinkle Download PDF Download PDF
Double-sided wrinkle Download PDF Download PDF

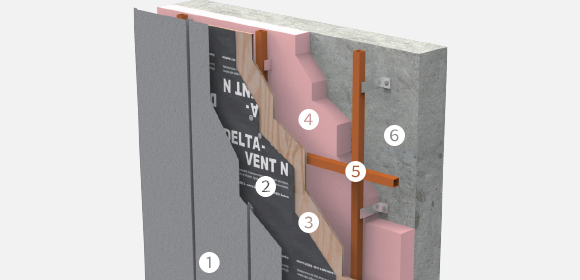

3D Deployment Chart

- ❶ INTERLOCK
- ❷ DELTA VENT N moisture-permeable waterproof paper
- ❸ Waterproof Plywood
- ❹ EPS Insulation
- ❺ Square Pipe
- ❻ Concrete

How to Install

Construction of the summer solstice For the installation of INTERLOCK, construct each pipe base horizontally and vertically on the structure (reinforced concrete). Waterproof by constructing water-resistant plywood and moisture-permeable waterproof paper on the lower extremity frame.

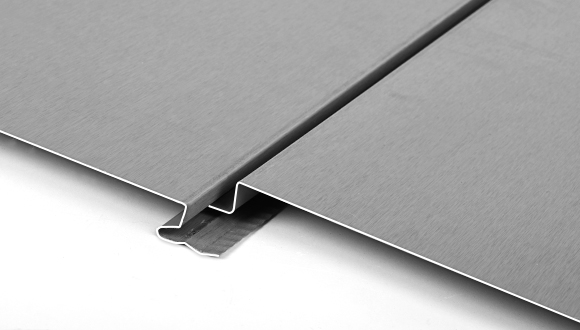

INTERLOCK Installation The installation of INTERLOCK can be done simply without the need for a separate clip or fastening parts. There is a hole for piece construction on the upper part of the panel, and it is constructed by inserting left and right, upper and lower joints. When installing INTERLOCK, it is important to install it horizontally and vertically.
INTERLOCK Flashing Installation Flashing construction for the completeness of INTERLOCK panel installation is also very important for waterproofing. It prevents rainwater from burning into the panel by using a flashing that fits each construction part. It also adds design completeness with the use of flashing.
Convenience of INTERLOCK Construction INTERLOCK panel minimizes the use of sealant, so there is no contamination from the area where the sealant is used. In addition, convenience has been increased with a simple construction method that does not require complicated tightening, and fast and economical construction is possible.
