INTERLOCK 16

INTERLOCK 16

INTERLOCK 16 is a product produced in consideration of the aesthetic needs of architects and designers, as well as the economic feasibility and construction feasibility of construction companies.
It is a product that can express the melody of a regular straight line in a structured manner by breaking away from the metal facade of uniform design to meet the trend of modern architecture The verticality-emphasized pattern of INTERLOCK 16 is applicable to buildings ranging from detached houses to large commercial facilities.
In addition, various materials and colors can be applied, so it can be used for the elevation, ceiling, and interior of buildings. This product can be applied to buildings.

Supply Specification

Total Area Exposure Width Product Purpose Construction Direction Processed Material

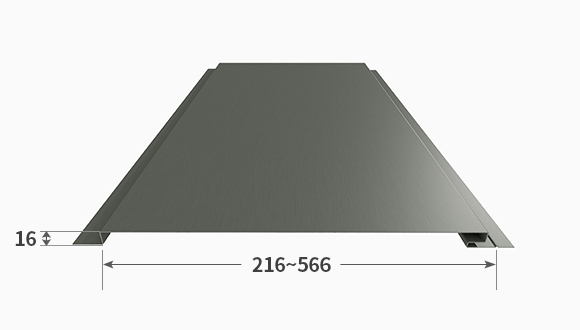

W300 x L x H16 mm Exposure Width: 216 / L=Create Custom Dimensions Interior and exterior finishing materials of buildings Can be constructed vertically or horizontally zinc, aluminum, high corrosion Resistance and High weather Resistance Alloy Plated Steel Sheet , copper plate
W500 x L x H16 mm Exposure Width: 416 / L=Create Custom Dimensions
Create Custom Dimensions Exposure Width: 216~566 / L=Create Custom Dimensions

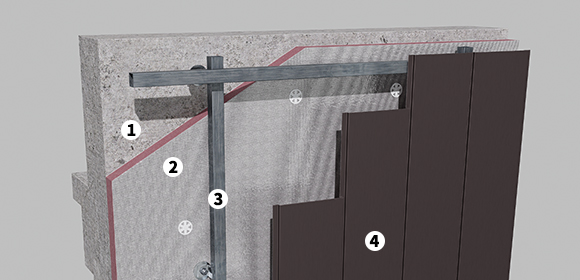

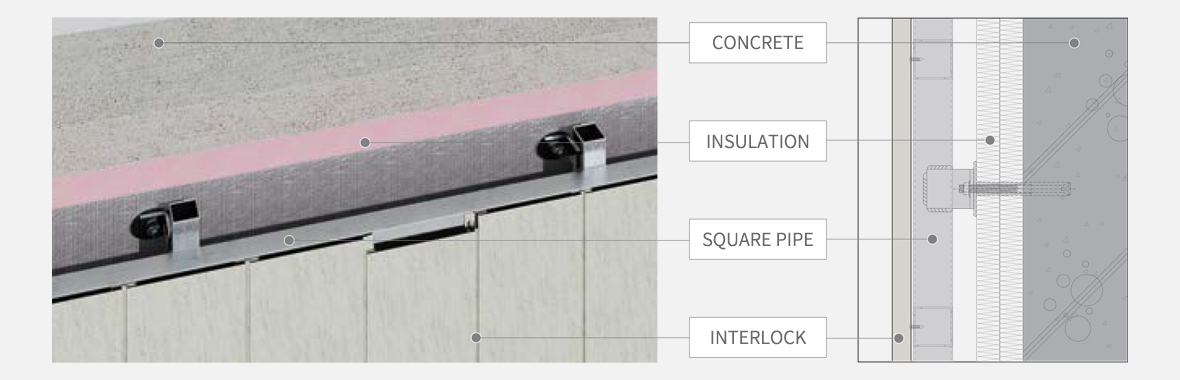

3D Deployment Chart

    • ❶ Concrete
    • ❷ Insulation
    • ❸ Square Pipe
    • ❹ INTERLOCK 16

How to Install

  • Construction of the summer solstice For the installation of INTERLOCK 16, construct each pipe base horizontally and vertically on the structure (reinforced concrete). Waterproof by constructing water-resistant plywood and moisture-permeable waterproof paper on the lower extremity frame.
  • INTERLOCK 16 Flashing Installation Flashing construction for the completeness of INTERLOCK 16 panel installation is also very important for waterproofing. It prevents rainwater from burning into the panel by using a flashing that fits each construction part. It also adds design completeness with the use of flashing.

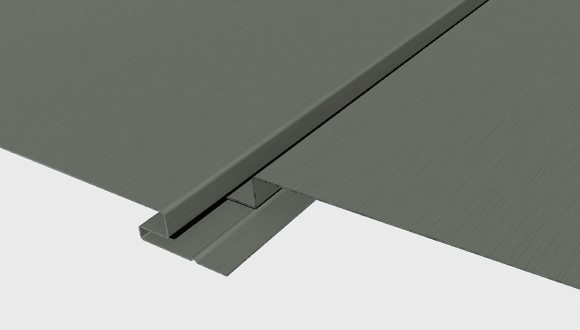

  • INTERLOCK 16 Installation The installation of INTERLOCK 16 can be done simply without the need for a separate clip or fastening parts. There is a hole for piece construction on the upper part of the panel, and it is constructed by inserting left and right, upper and lower joints. When installing INTERLOCK 16, it is important to install it horizontally and vertically.
  • Convenience of INTERLOCK 16 Construction INTERLOCK 16 panel minimizes the use of sealant, so there is no contamination from the area where the sealant is used. In addition, convenience has been increased with a simple construction method that does not require complicated tightening, and fast and economical construction is possible.

INTERLOCK 16 Solution

INTERLOCK 16 does not reveal the left and right joints and can be produced up to 10M, so it can complete an elevation pattern that reflects the architect's intention.
In addition, all materials and colors of high-resistant, highly weather-resistant alloy plated steel sheets, aluminum, and original jinks will be applied, opening a new paradigm for uniform architectural facades.
Construction is simple and efficient. Interlocking fastening is an important factor that can shorten the construction process by simplifying the construction process.
It also adds to the completeness of construction with the use of flushes produced with the same material as the panel.
INTERLOCK 16 has minimized the use of sealant to remove contamination of the sealant area, which was a problem with conventional metal cladding.
