SMART INTERLOCK

SMART INTERLOCK

SMART INTERLOCK is a product produced in consideration of the aesthetic needs of architects and designers, as well as the economic feasibility and construction feasibility of construction companies.
It is a product that can express the melody of a regular straight line in a structured manner by breaking away from the metal facade of uniform design to meet the trend of modern architecture. The verticality-emphasized pattern of SMART INTERLOCK is applicable to buildings ranging from detached houses to large commercial facilities.
In addition, various materials and colors can be applied, so it can be used for the elevation, ceiling, and interior of buildings.

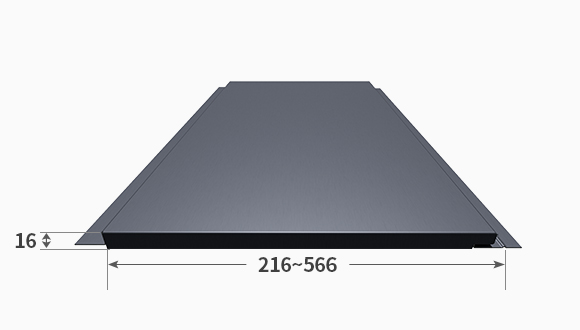

Supply Specification

Total Area Exposure Width Product Purpose Construction Direction Processed Material
W300 x L x H16 mm Exposure Width: 216 / L=Create Custom Dimensions Interior and exterior finishing materials of buildings Can be constructed vertically or horizontally zinc, aluminum, high corrosion Resistance and High weather Resistance Alloy Plated Steel Sheet , copper plate
W500 x L x H16 mm Exposure Width: 416 / L=Create Custom Dimensions
Create Custom Dimensions x L x H16 mm Exposure Width: 216~566 / L=Create Custom Dimensions

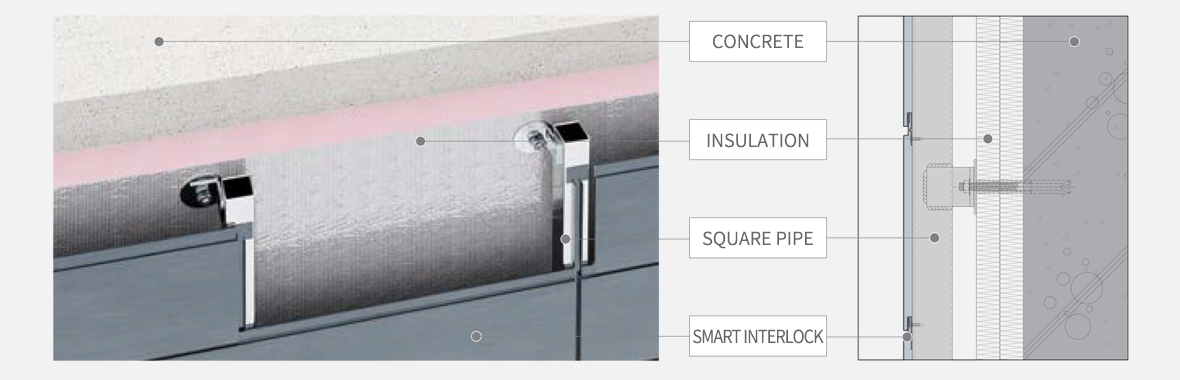

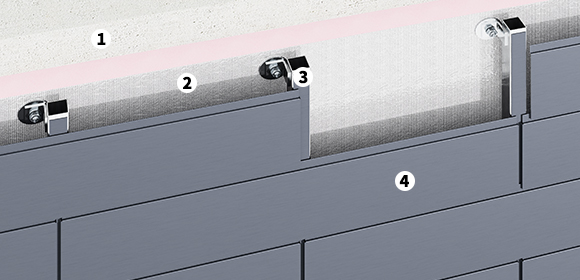

3D Deployment Chart

    • ❶ Concrete
    • ❷ Insulation
    • ❸ Square Pipe
    • ❹ SMART INTERLOCK

How to Install

  • Construction of the summer solstice For the installation of SMART INTERLOCK, construct each pipe base horizontally and vertically on the structure (reinforced concrete). Waterproof by constructing water-resistant plywood and moisture-permeable waterproof paper on the lower extremity frame.
  • SMART INTERLOCK Flashing Installation Flashing construction for the completeness of SMART INTERLOCK panel installation is also very important for waterproofing. It prevents rainwater from burning into the panel by using a flashing that fits each construction part. It also adds design completeness with the use of flashing.
  • SMART INTERLOCK Band sheet Installation Before installing the SMART INTERLOCK panel, a band of the same material as the panel is installed to prevent rainwater from burning into the panel and to add design completeness.
  • Convenience of SMART INTERLOCK Construction SMART INTERLOCK panel minimizes the use of sealant, so there is no contamination from the area where the sealant is used. In addition, convenience has been increased with a simple construction method that does not require complicated tightening, and fast and economical construction is possible.

SMART INTERLOCK Solution

SMART INTERLOCK can complete an elevation pattern that reflects the architect's intention because the left and right joints are not exposed to the outside and can be produced up to 10M.
In addition, all materials and colors of high-resistant, highly weather-resistant alloy plated steel sheets, aluminum, and original jinks will be applied, opening a new paradigm for uniform architectural facades.

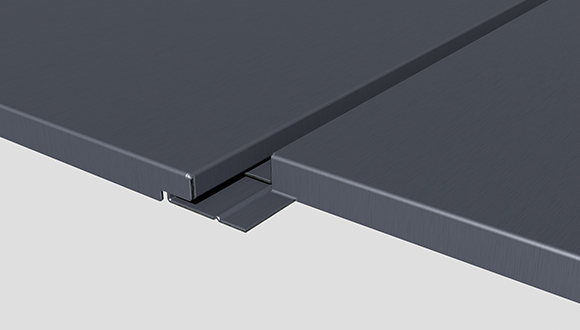

Construction is simple and efficient. Interlocking fastening is an important factor that can shorten the construction process by simplifying the construction process.
It also adds completeness to the construction by using the flushes produced with the same material as the panel. JM Panel SMART INTERLOCK minimized the use of sealant, and removed the contamination of the sealant area, which was a problem with the existing metal exterior.
