V250 Product Description

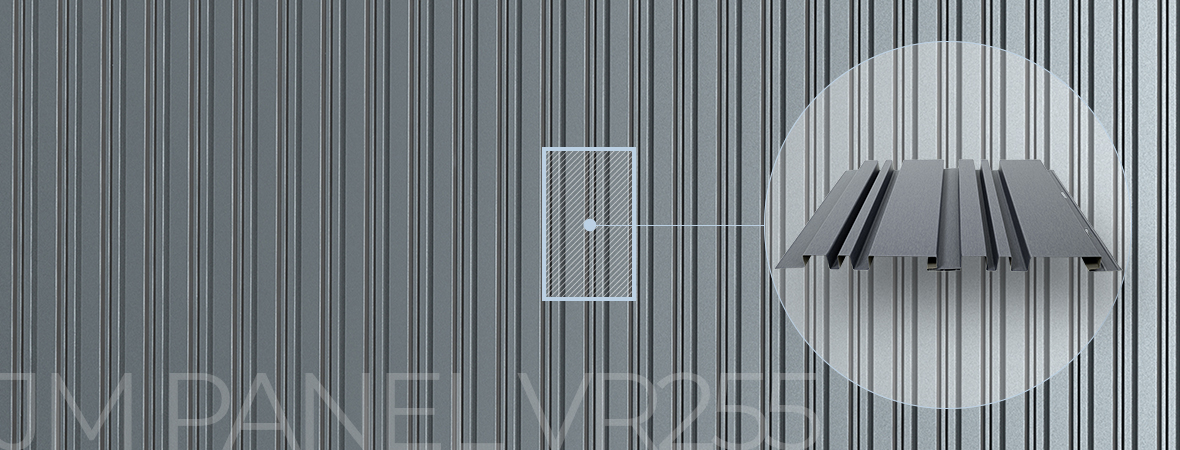

JM PANEL VR255

JM Panel VR255 is a product produced in consideration of the aesthetic needs of architects and designers, as well as the economic feasibility and construction feasibility of construction companies.
It is a product that can structure the melody of a regular straight line by breaking away from the metal facade of uniform design, and it is a pattern that emphasizes verticality in line with the trend of modern architecture pursuing modernity, and can be applied to a variety of buildings from detached houses to large commercial facilities.
In addition, various materials and colors can be applied, so it can be used for the elevation, ceiling, and interior of buildings.

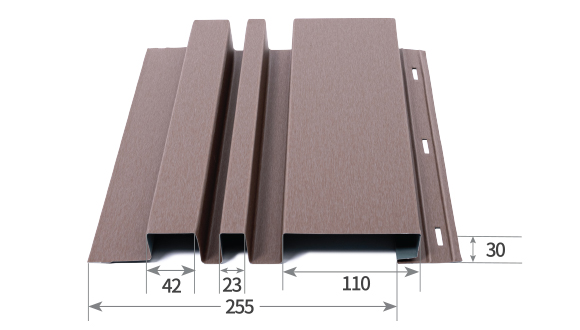

Supply Specification

Total Area Exposure Width Product Purpose Construction Direction Processed Material
W500 x L x H30 mm Exposure Width: 255 / L=Create Custom Dimensions Interior and exterior finishing materials of buildings Can be constructed vertically or horizontally zinc, aluminum, high corrosion Resistance and High weather Resistance Alloy Plated Steel Sheet , copper plate

V255 Sample

WOOD

  • PosMAC
    W01 Natural Wood
  • PosMAC
    W02 Red Brown Wood
  • PosMAC
    W03 Dark Brown Wood
  • PosMAC
    W04 Concrete Wood

ZINC

  • JARDEN ZINC
    Ocean Blue
  • Premium JAL ZINC
    Premium JAL 003 Red
  • Premium JAL ZINC
    Premium JAL 008 Brown
  • JAL ZINC
    JAL 201 Solid Grey

SOLID

  • PosMAC
    PosMAC 401 Metalic Silver
  • PosMAC
    PosMAC NC03 Non-combustion White
  • PosMAC
    PosMAC NC01 Non-combustion Dark Grey
  • PosMAC
    PosMAC NC02 Non-combustion Black

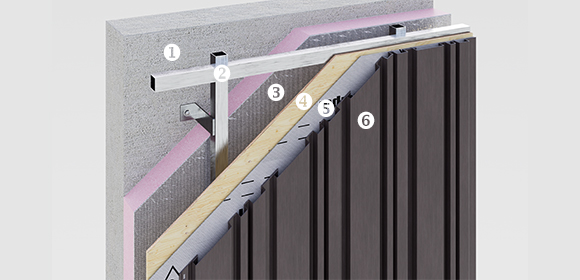

3D Deployment Chart

    • ❶ Concrete
    • ❷ Square Pipe
    • ❸ Insulation
    • ❹ Waterproof Plywood
    • ❺ DELTA VENT N moisture-permeable waterproof paper
    • ❻ JM PANEL VR255

How to Install

  • Construction of the summer solstice For the installation of JM Panel VR255, construct each pipe base horizontally and vertically on the structure (reinforced concrete). Waterproof by constructing water-resistant plywood and moisture-permeable waterproof paper on the lower extremity frame.
  • JM Panel VR255 Flashing Installation Flashing construction for the completeness of JM Panel VR255 panel installation is also very important for waterproofing. It prevents rainwater from burning into the panel by using a flashing that fits each construction part. It also adds design completeness with the use of flashing.
  • JM Panel VR255 Installation The installation of JM Panel VR255 can be done simply without the need for a separate clip or fastening parts. There is a hole for piece construction on the upper part of the panel, and it is constructed by inserting left and right, upper and lower joints. When installing JM Panel VR255, it is important to install it horizontally and vertically.
  • Convenience of JM Panel VR255 Construction JM Panel VR255 panel minimizes the use of sealant, so there is no contamination from the area where the sealant is used. In addition, convenience has been increased with a simple construction method that does not require complicated tightening, and fast and economical construction is possible.

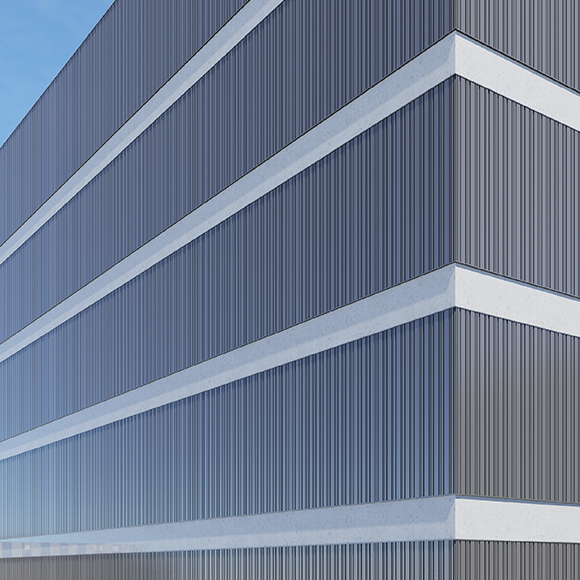

Construction Case
